Wyvern Pavane 224

Wyvern Pavane 224

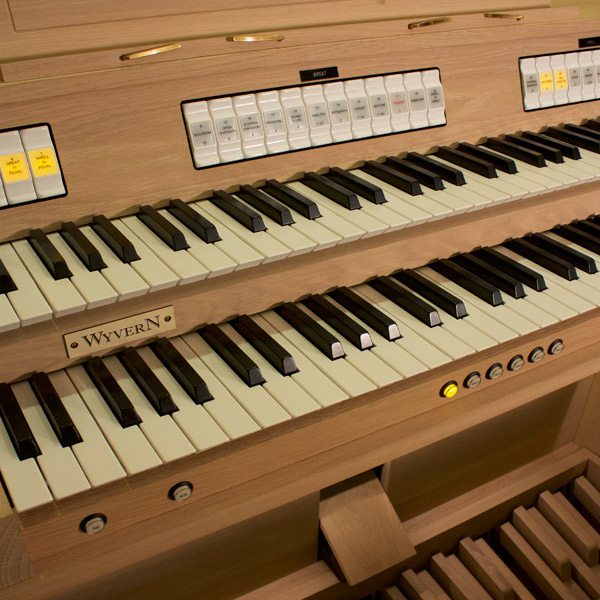

The Wyvern Pavane 224 has an understated classical look housed in an open compact console with high quality tracker touch keyboards. Despite being the entry level model this exudes quality. It has a durable real oak console with an abundance of solid oak including all edges, the music desk, bench top and key blocks.

The compact dimensions make it ideal for use where space may be limited. The organ is supplied with a 30 note radial/concave pedalboard, programmable general pistons, single wooden expression pedal and a back-lit voice controller.

The Wyvern Pavane is designed with an emphasis on tonal quality.  Each rank is individually generated giving faithful realism and rich choruses. The powerful tone generation system and refined voicing data ensures that each stop is of exceptional quality and retains its individual character. As with all Wyvern MPS organs the engraved specification is firmly in the English tradition plus the organist has a further choice of three alternative specifications; Romantic, Baroque and Classical.

The voice controller enables the organist to customise the characteristics of each stop to suit their own requirements or the acoustic of the building. This includes individual control of chorus, tone, pitch, volume and the ability to regulate on a note-by-note basis.

Gallery

Voice Specification

Pedal

Bourdon
16
Bass Flute
8
Fifteenth
4
Trombone
16
Trumpet
8
Swell to Pedal
Great to Pedal

Great

Bourdon
16
Open Diapason
8
Stopped Diapason
8
Principal
4
Suabe Flute
4
Twelfth
2 2/3
Fifteenth
2
Cornet (1.8.12.15.17)
Vrks
Mixture (19.22.26.29)
IVrks
Trumpet
8
Tremulant
Swell to Great

Swell

Stopped Diapason
8
Salicional
8
Vox Angelica
8
Flute
4
Nasard
2 2/3
Fifteenth
2
Mixture (22.26.29)
IIIrks
Fagotto
16
Cornopean
8
Tremulant

General specification

Two 61 note "tracker touch" manuals. Swell expression pedal. Great and Pedal enclosed piston. 6 General pistons. Setter piston. General cancel piston. Reeds off piston. Midi switches on/off Pedal, Great & Swell. Audio 6 x 30 watt digital amplifiers, 6 x speakers. Personal voicing unit.

Dimensions

Width 1260mm Height 1110mm Depth 510mm Depth inc. pedalboard 940mm. Total weight 124kgs
